This v.1.0.1 content contains an imperial version (imperial Nominal Pipe Size and imperial dimension) for Pipe, Fittings, Flanges, Gaskets, and VP200 accessories for PVC materials of the Hershey Valve manufacturer.
- All Pipe, Fittings, and VP Accessories components are parametric primitives.
- Engagement lengths are according to the vendor catalog.
- All items have their product codes are entered with the “Material code” & “Item code” fields.
1. Hershey Valve – CPVC Pipe and Fittings (Advanced Industrial Piping System)
http://www.hersheyvalve.com/downloadfiles/Hershey%20Valve-%20CPVC%20Catalog%202012.02.pdf
2. Hershey Valve – UPVC Pipe and Fittings (Industrial Piping System)
http://www.hersheyvalve.com/downloadfiles/HERSHEY%20VALVE-UPVC%20Pipe%20and%20Fittings%202011.pdf
3. Hershey Valve – VP200 Accessories series
http://www.hersheyvalve.com/downloadfiles/Hershey%20Valve-%20Valve%20catalog-%20VP-200%202013.07.pdf

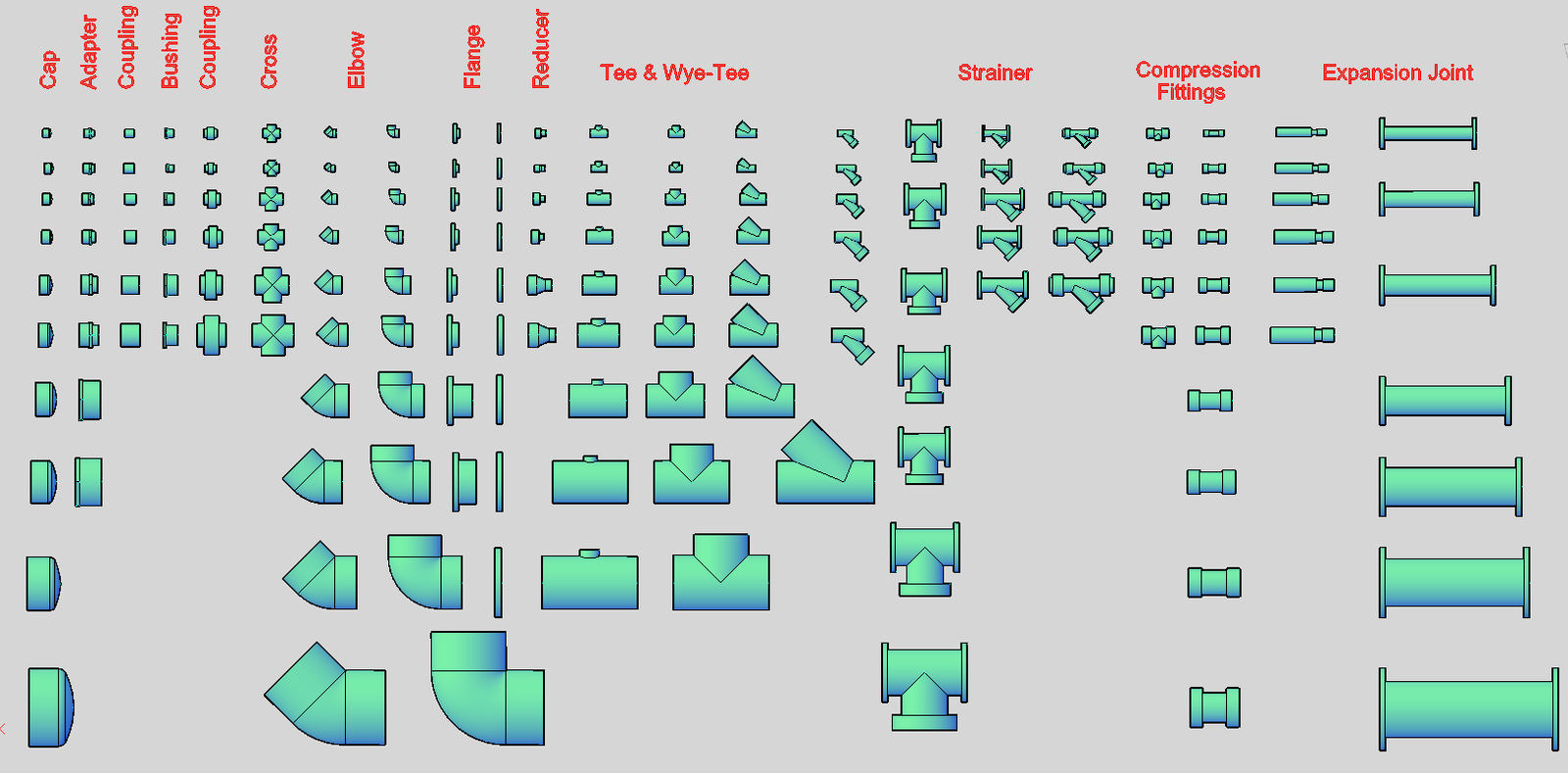

Catalog components include:
- PIPE (SCH40 & SCH80)
- 90 ELBOW (SCH40 & SCH80)-SOCKET
- 90 ELBOW (SCH40 & SCH80)-THREAD
- 45 ELBOW (SCH40 & SCH80)-SOCKET
- COUPLING (SCH40 & SCH80)-SOCKET
- COUPLING (SCH40 & SCH80)-THREAD
- TEE (SCH40 & SCH80)-SOCKET
- TEE (SCH40 & SCH80)-THREAD
- CAP (SCH80)
- Y-TEE 45 (SCH80)
- RED. TEE (SCH80)
- RED. BUSHING (SCH80)
- RED. COUPLING (SCH80)
- CROSS (SCH80)-SOCKET
- ADAPTER (SCH80)
- COMPRESSION TEE
- COMPRESSION COUPLING
- T STRAINER – FLANGE (ANSI, JIS STANDARD)
- Y STRAINER – FLANGE (ANSI, JIS STANDARD)
- Y STRAINER – UNION (ANSI, JIS STANDARD)
- Y STRAINER – FLANGE (ANSI, JIS STANDARD)
- EXPANSION JOINT– FLANGE (ANSI, JIS STANDARD)
- EXPANSION JOINT– SOCKET (ANSI STANDARD)
- EXPANSION JOINT– THREAD (ANSI STANDARD)
- UNION– SOCKET (ANSI, JIS STANDARD)
- UNION– THREAD (ANSI, JIS STANDARD)
- FLANGE ONE PIECE– SOCKET (ANSI, JIS STD.)
- FLANGE ONE PIECE– THREAD (ANSI, JIS STD.)
- FLANGE VAN STONE– SOCKET (ANSI, JIS STD.)
- FLANGE VAN STONE– THREAD (ANSI, JIS STD.)
- BLIND FLANGE
- GASKET
